TP-Link EAP225 Gigabit Ceiling Mount Access Point

Name: TP-Link EAP225 Gigabit Ceiling Mount Access Point - Cheeta Enterprises
Price: 7000.00 INR
Availability: InStock

Categories: Access Pioint, Networking

🗂️ Model EAP225

🛡️ Warranty Period 3 Years From TPLINK Service Center

📍 Service Center List View →

🌐 Product URL View Product →

📝 Product Registration Click here →

📋 Warranty Claim Click here →

🎧 Technical Support Click here →

🔧 Installation Guide Click here →

Original price was: ₹10,999.00.Current price is: ₹7,000.00.

Check delivery options in your location

Add to compare

Add to wishlist

Have questions or need a special quote? Get custom pricing via Email & WhatsApp instantly.

Pick up from the CE Store

To pick up today

1-2 Days

Free

Courier delivery

Our courier will deliver to the specified address

4-5 Days

Rs 150 Extra

Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-3 Days

Start from Rs250 Extra

Payment Methods:

77 People watching this product now!

Description

📋 Specifications

Feature	Specification
HARDWARE FEATURES
Interface	1× Gigabit Ethernet Port
Physical Security Lock	Yes
Button	Reset
Power Supply	• 802.3af PoE • 24V Passive PoE (+4,5 pins; -7,8 pins. PoE Adapter Included)
Max. Power Consumption	EU: 10.5 W US: 12.6 W
Dimensions (W × D × H)	8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna	3× Internal Omni • 2.4 GHz: 3× 4 dBi • 5 GHz: 2× 5 dBi
Mounting	Ceiling / Wall Mounting (Kits included)
MANAGEMENT FEATURES
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Local / Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes
WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 450 Mbps
Wireless Functions	• Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • Seamless Roaming* • Omada Mesh* • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication* • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support
Transmission Power	CE: 10–20 dBm (2.4 GHz, EIRP) 9–23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP) 9–27 dBm (5 GHz, U-NII-2C, EIRP) FCC: 6–24 dBm (2.4 GHz) 4–22 dBm (5 GHz, U-NII-1 & U-NII-3)
OTHERS
Certification	CE, FCC, RoHS

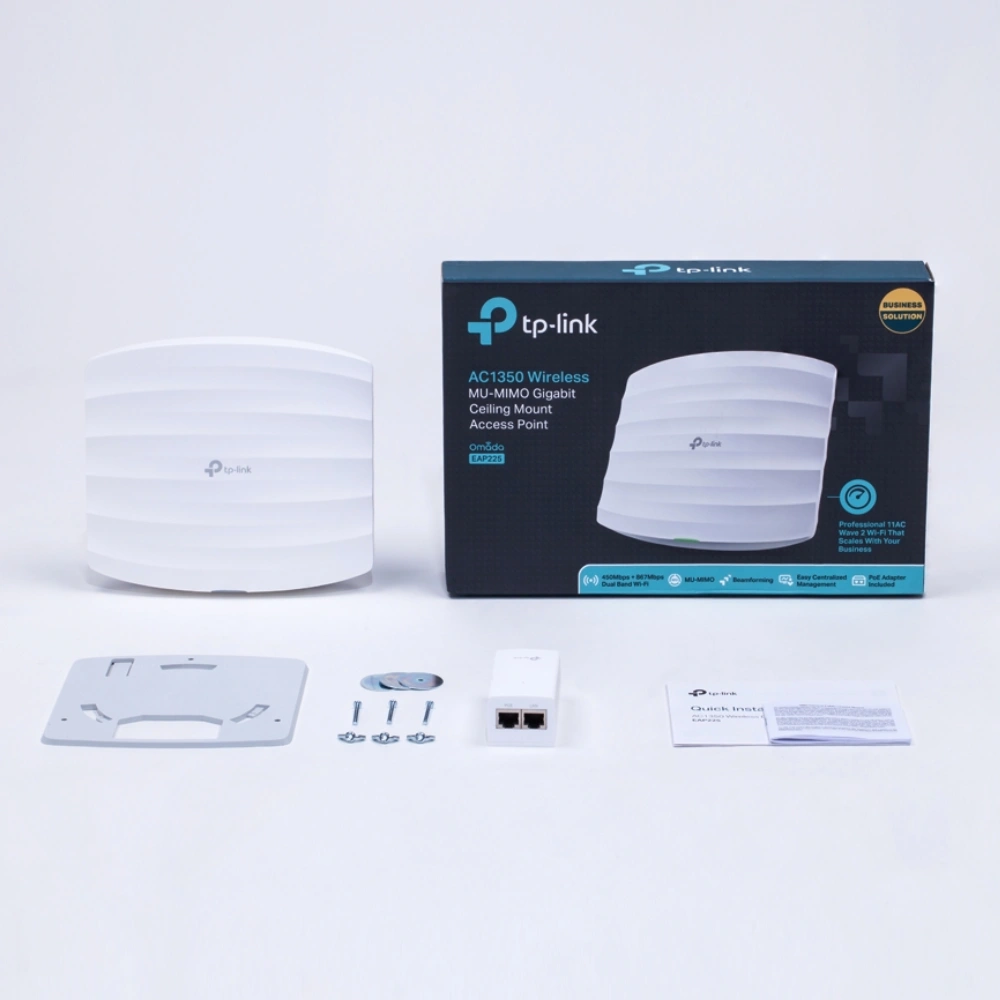

Package Content	• EAP225 • Passive PoE Adapter • Power Cord • Mounting Kit • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

About this item

Dual-Band Wi-Fi 5: 867 Mbps on 5 GHz and 450 Mbps on 2.4 GHz.^†
1× Gigabit Port: Ensures a high-speed connection to the wired network, eliminating a potential bottleneck.
Low Latency and Interference: MU-MIMO, Band Steering, and Beamforming ensure high performance for your network.^‡
Flexible Deployment and Easy Setup: Supports both 802.3af PoE and 24V Passive PoE for flexible installation. Omada SDN for one-click setup.
Advanced Features: Supports centralized management, mesh, and seamless roaming.^△
More Connections and Wider Coverage: Supports 220+ concurrent clients** and covers up to 1250 ft² (115 ㎡) * for reliable and extensive wireless connectivity
