Description
| Parameter | Details |

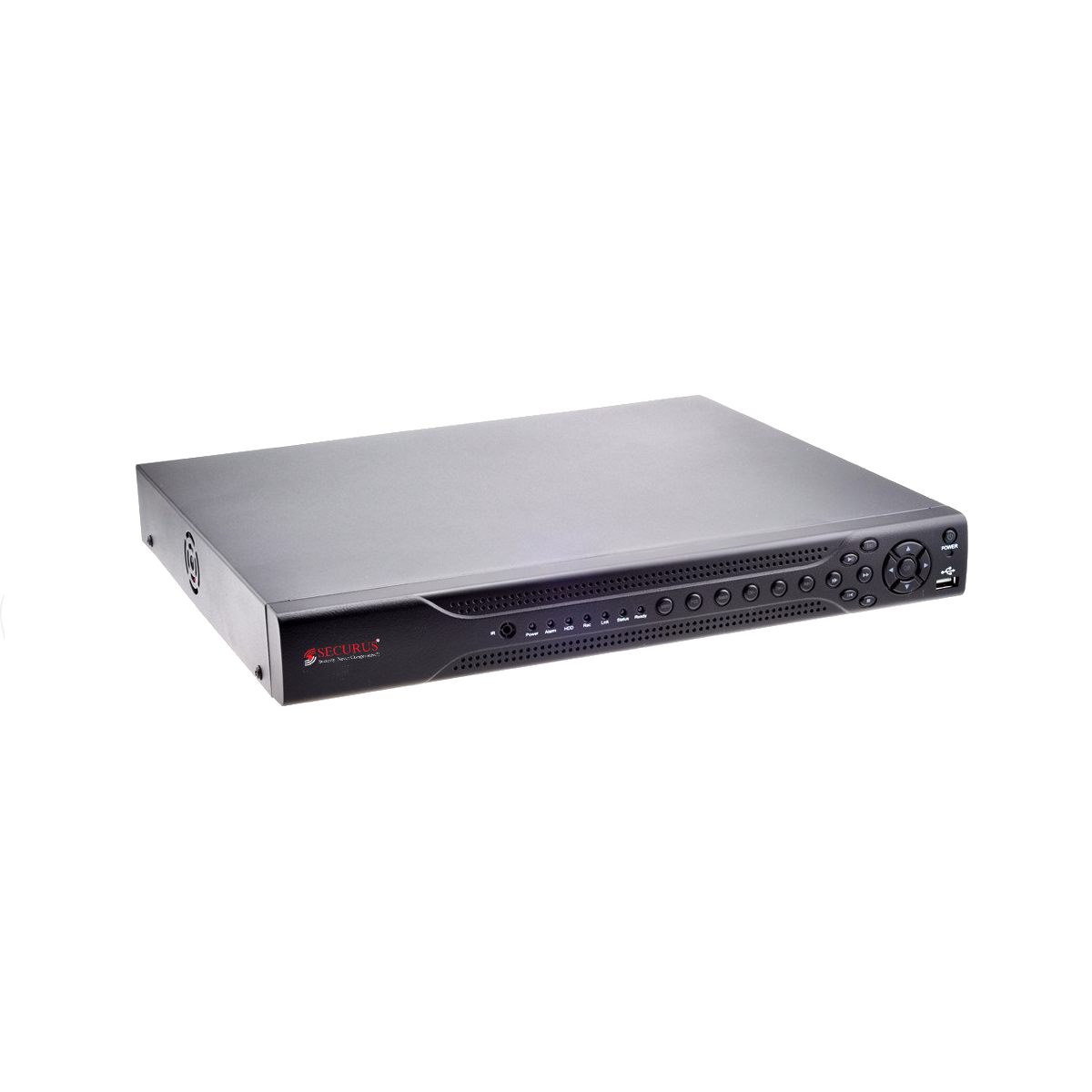

| Model | SS-N8009RVA-H1-M5 |
| Make | SECURUS |
| User Interface | Graphic User Interface (GUI) |
| Operating System | Embedded Linux |
| Operation Mode | Preview, Record, Playback, Backup, Network |
| Password Security | Multi-level User Management |
| ONVIF | Support |
| Video Input | 9ch 5M/9ch1080P |
| HDMI Output | Supports (Max : 4K) |
| VGA Output | Supports (Max : 1080P) |
| CVBS main output | N.A. |
| Audio output | 1 Ch, RCA connector |
| Display | 1/4/6/8/9 optional |
| Video standard | PAL/NTSC |
| Video compression | H.265AI/H.265+/H.265/H.264+/H.264 |
| Intelligent Functions | Trip Wire, Face Detection |
| Video encoding resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 1080P |
| Video frame rate | PAL: 1-25 FPS NTSC: 1-30FPS |
| Video bit rate | 1536kbps-3072kbps |
| Stream Type | Video & Audio/Video |
| Audio compression | G.711A |
| Recording mode | Always/Schedule/Alarm/Recording/Motion detection recording |
| Video search | Time/Channel/Event |
| Display Zoom | Live Playback & Mobile |
| Audio bit rate | 8—32kbps |
| Dual-stream | Supports |
| Mobile Monitoring | “RMEye Pro” Application for Android And iPhone |
| Recording resolution | 9 CH Realtime Recording |
| HDD Port | 1 SATA |
| HDD Maximum Capacity | 12TB for each Sata connector |
| Voice talk | Support, 1CH BNC line in/1CH RCA Audio out. |
| Record mode | Audio & Video recording simultaneously |
| Remote control | Supports |
| Network protocol | Supports IE, TCP/IP, UDP, RTP, RTSP, NTP, HTTP, DHCP, PPPoE, SMTP, DNS, DDNS, HTTPS, SNMP |
| Security | IP address filtering, User access log, 802.1x authentication, Encryption |
| Network Bandwidth | 80Mbps Incoming / 80Mbps Outgoing |
| DDNS Server | www.securusddns.com |
| Network | 1 RJ45 10M/100M |
| USB Connector | 2 x USB 2.0 |
| Firmware update | Support USB update/Network update |
| Alarm input | N.A. |
| Alarm output | N.A. |
| Power supply | NVR: DC 12V 2A |
| Operation Temperature | -10℃–＋55℃ |
| Operation Humidity | 10％–90％ |
| Chassis | Standard 1.0U |
| Dimension | 236mm (W) × 255mm (L) × 44mm (H) |
| Weight(without HDD) | ≤1.0Kg |
| Certifications | CE, FCC, RoHS, BIS |
